Slag Grinding Unit Manufacturers


In the manufacturing of Slag Grinding Unit Manufacturers Cement Plant, Clinker, Gypsum additives or slag are heaped into their respective yards. Subsequently these are carried to the respective jaw crushers with the help of belt conveyors. Jaw crushers convert the big pieces of Clinkers, gypsum additives and slag into smaller pieces where from these pieces go to Bucket Elevators. From the Bucket Elevators these materials are collected in their respective silos.


The materials collected into their respective silos are controlled and adjusted by the table Feeders .The proportionate amount of Clinker, Gypsum and slag are stored into Bucket Elevators through belt conveyor, where from this mixture is stored into Master Hopper. Next, the mixture thus collected into master hopper, is carried to BALL MILL for the final grinding.


After final grinding the finished product is passed into the bucket elevator. From there, it goes to the cement blending silos for blending .After the final blending, the material is stored into cement storage silos and goes for packaging and are ready for sale. Supertech’s Grinder Unit is rust and moisture proof.

The power consumption, weight, model and production capacity of the Grinding Unit depends on our customer’s specifications. The Body of these units are manufactured with quality metals and other standardized raw materials. In addition to this, each and every component of the unit is manufactured under the guidance of our expert quality controllers. It helps us to serve the customers with a range of reliable, strong and durable Grinding Unit.


Clinker Grinding Unit
Slag Grinding Unit Manufacturers

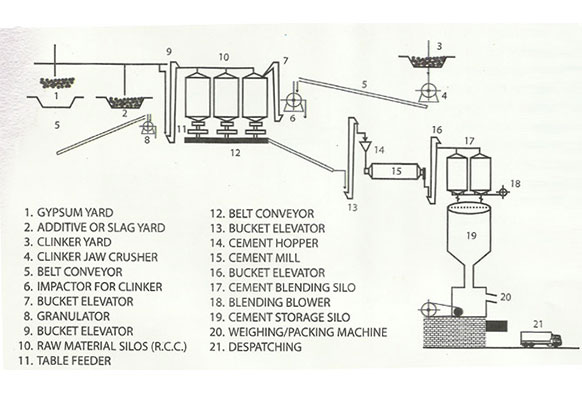

FLOW CHART OF AUTOMATIC GRINDING UNIT

Slag Grinding Unit Manufacturers

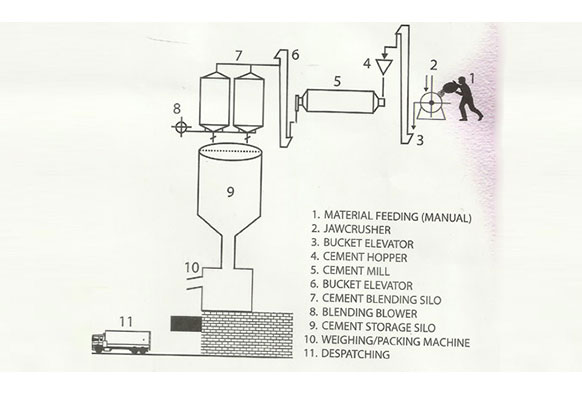

THE PROCESS OF MANUAL GRINDING UNIT

First the material has been fed into jaw crusger directly,Where bold pieces are converted into small pieces throw crushing. This crushed material now goes to bucket elevator and after that, it is stored into master hopper . After this process,for final grinding it is fed into ball mill where fine grinding takes place.It is the final stage for grinding now.The finished quantity-from the ball mill is stired bucket elevator. After blending the quantity is stored into cement storage silos then it goes for paccking through automatic packing and ready for despatch.

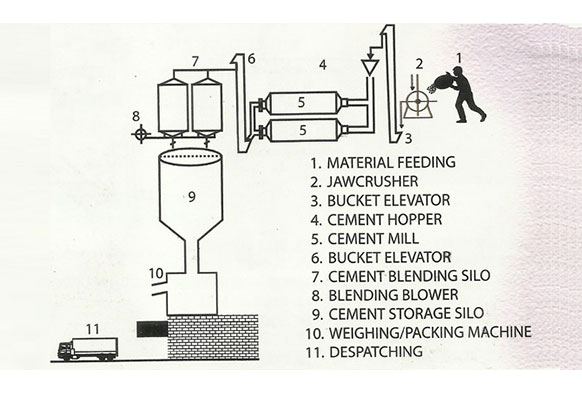

DOUBLE BALL MILL ARRANGEMENT

For the purpose of continuous running and grindin, it seems much better tha Double Ball Mill Arrangement. This arrangement, not only gives continuous production but produce the cement with lesser costs . More over , this Double Ball Mill Arrangement do not require any extra equipment in comparison with Single Ball Mill Arrangement. In this arrangement , the whole unit remains running if one one of the Ball Mill stops working dueto wear & tear or some mechnical break down. It Avoides suspension and production . That is why the production becomes double with the lesser coats. It is more economical. This arrangement may be automatic as well manual. It may be handled easily manpower.


Slag Grinding Unit Manufacturers
